For a diesel BMW X5 F15, compare a confirmed BimmerLink setup, a BMW-aware handheld and eligible OBDeleven hardware according to the exact reporting task. A compatible generic OBD2 reader may suit supported engine-emissions information, but should not be assumed to cover the automatic gearbox, body, chassis or xDrive controllers. The 25d engine update and actual drivetrain make build identification worthwhile before purchase.
This is a documentary buying guide. Unusual Cars has not independently tested this vehicle, scanner or function. Exact access varies by build, fitted controller, vehicle software, interface and tool version.
Advertisement: This guide contains Amazon affiliate links. As an Amazon Associate I earn from qualifying purchases.
Which BMW X5 F15 diesels does this cover?
This guide covers UK F15 five-door SUVs from the 2013 introduction through the 2018 generation change. Included models are sDrive25d and xDrive25d four-cylinder diesels, plus xDrive30d and xDrive40d six-cylinder diesels, where UK supplied in the actual year. They use the conventional eight-speed automatic. Standard M Sport trim is included on an in-scope model.
M50d, F85 X5 M, petrol models, xDrive40e plug-in hybrids, E70 and G05 X5s, Alpina, imports and materially modified electronics are excluded. The hybrid and performance applications need separate evidence. A standard diesel guide does not promise their powertrain, high-voltage or other diagnostic functions.
The 25d change, sDrive and xDrive
BMW’s BMW UK F15 launch establishes the UK F15 introduction in November 2013 with an eight-speed automatic and sDrive/xDrive diesel choices. The sDrive25d is the rear-wheel-drive route; xDrive models have a different drivetrain reporting question. Record the actual drive configuration rather than assuming every X5 needs an xDrive-controller report.
The BMW UK 2015 engine update identifies a new generation of four-cylinder X5 diesel engine from August 2015. An early and a later 25d should therefore be separate build enquiries even though the badge is familiar. Do not identify the engine solely from registration year or a sales description.
The BMW 2018 next X5 documents the next generation’s 2018 introduction. Confirm F15 on cars registered near the transition. Engine, gearbox, drivetrain and fitted equipment belong in a coverage enquiry; appearance, M Sport trim and a shared X5 badge do not establish identical controller access.
Quick scanner choice
| Your task | Candidate route | Before purchase |
| Supported diesel-emissions report | Compatible generic EOBD reader | Actual engine/build and available data |
| BMW fault reports beyond the engine baseline | Confirmed BimmerLink or BMW handheld | Named installed controller and reporting capability |
| BMW-capable OBDeleven diagnostics | Supported device and current BMW app | Exact F15, phone and requested function |
| Hybrid, M50d or X5 M investigation | Separate model-specific route | Outside this standard diesel scope |
A drivetrain warning is not a parts verdict
A dashboard drivetrain message does not identify a failed gearbox or diesel component by itself. Record the wording, when it appears and any accompanying symptoms. A generic engine report can provide useful supported information, but does not establish complete reporting from the automatic-transmission or xDrive controller.
Keep full codes, controller names, available freeze-frame information and symptom circumstances before clearing anything. A reported condition can have several causes. A fault naming airflow, pressure or another measurement should not automatically become a replacement-parts recommendation. Equally, no engine codes does not prove that all other relevant BMW controllers are clear.
Diesel equipment and chassis options change the enquiry
For an emissions-related complaint, identify the installed engine and equipment before requesting a particular measured value. Do not assume every 25d, 30d and 40d build has identical reporting or that a general product feature list proves the data available on your F15. Request fault reports and measured values separately.
This guide provides no forced regeneration, emissions-system bypass, exhaust-component coding or other commanded procedure. A scanner purchase does not establish that a maintenance command is appropriate for a symptom. Reading information and changing vehicle behaviour are different capabilities, with different prerequisites.
For a suspension or body complaint, record the fitted equipment and ask about the relevant installed controller. For an xDrive complaint, request its reporting support separately from engine access. No ride-height calibration, transfer-case adaptation or active test is provided. A saved electronic report cannot rule out every mechanical issue requiring inspection.
BimmerLink and a complete F15 setup
BimmerLink supported models lists X5 from 2006, covering the F15 family’s period. Check the exact build, requested controller, phone platform and selected adapter together. Family-level eligibility does not promise every marketed function, and the app is purchased separately from the interface.
The UniCarScan UCSI-2100 UK package is a documented Bluetooth LE candidate for supported iOS and Android setups. The Developer adapter selector linked by BimmerLink linked by the developer also distinguishes F/G/I ENET options. A wired ENET route needs the correct connection to the phone or computer; a cable alone is not a complete app setup. Confirm the actual hardware model and current operating-system requirements.
BimmerCode is a separate coding product. Its inclusion in an advert does not establish diagnostic reporting or a particular F15 function. This guide compares supported read/report routes and does not guarantee battery registration, parking-brake service mode, DPF commands or other operations from a general marketing list.
A BMW handheld: check the generation and software package
The iCarsoft BMM V3.0 is a candidate if a separate screen suits you better than a phone. Broad BMW F-series coverage is a starting point for an exact enquiry, not a list of supported controllers on your diesel X5. Confirm the particular BMM generation, current vehicle database and report required.
V3.0 documentation advertises lifetime updates via a PC/card-reader route. Check update-computer requirements, supplied hardware and support terms. Other handheld generations or brands may use different licences and update arrangements, so a similar model name is not enough to establish the package.
The F15 handheld connection question illustrates an older F15 owner discussion about handheld connection difficulties. That discussion concerns a petrol car and is not proof of diesel coverage or a current verdict on the product. Its useful lesson for this guide is to check the precise hardware/software combination rather than transferring an old anecdote into a purchase guarantee.
OBDeleven: supported diagnostics and optional purchases
OBDeleven vehicle support includes F-series BMWs. The OBDeleven Advanced Diagnostics identifies OBDeleven 2 NextGen or 3 and the BMW-capable OBDeleven app. The OBDeleven BMW features directs new buyers towards current 3 hardware. FirstGen hardware or a VAG-only application should not be treated as an equivalent F15 setup.
Supported diagnostics use the FREE plan. Optional One-Click Apps, Credits and subscriptions have separate availability, country and purchase conditions. Check current activation and renewal terms before paying for an optional feature. Buying a plan cannot establish a function that the actual F15 build does not support.
Manual-coding or adaptation claims from Volkswagen and Audi material are not BMW evidence. Name the exact report or operation in the coverage enquiry. This article focuses on diagnostic information and avoids promising service, coding, calibration or programming functions without exact support.
Love cool cars? Join Unusual Cars Club FREE!
Get forgotten motoring finds, stories, helpful car content and more.
Free to join. No spam. Unsubscribe whenever you like. See our privacy policy.
Legitimate BMW software and specialist investigation
An unresolved F15 complaint can need a fuller investigation than an owner’s report provides. BMW AOS is BMW’s official UK service-software route to investigate. Current entitlement, software/computer configuration, suitable interface and model coverage should be confirmed directly, rather than copied from a North American subscription page.
An ENET cable does not include legitimate workshop-software access. This guide does not recommend copied INPA/ISTA files, licence bypasses or marketplace software bundles. Provide the engine and gearbox identity, sDrive/xDrive configuration, relevant fitted equipment, preserved report and symptoms to an appropriately equipped specialist.
Choosing from the BMW scanner search
The Amazon graphic opens a broad BMW diagnostic-scanner search. Results mix generic readers, handhelds and phone adapters; it is a browsing route, not a pre-approved F15 shopping list. A listing mentioning X5 may still refer to a different generation, engine or package.
Give the supplier F15, UK specification, production month, exact diesel engine, eight-speed automatic, sDrive/xDrive and the required controller report. Add phone, app and adapter details for a phone route. Ask what is included, what costs extra, how updates work and what support/return terms apply. Keep a precise current coverage answer with your vehicle details.
Common questions
Does the E70 guide already cover my F15?
No. This guide covers the next X5 generation with its own diesel range, eight-speed automatic and current setup checks.
Are all 25d builds identical?
No. BMW introduced a new four-cylinder diesel generation during 2015. Use production and engine details in the coverage enquiry.
Does this guide include the xDrive40e?
No. The plug-in hybrid is excluded and needs a separate scope and supporting evidence.
More BMW diagnostic guides
Browse the BMW diagnostic scanner hub and complete car diagnostic-scanner directory. Choose the guide for the actual generation; shared badges or tool brands do not establish identical diagnostic coverage.
For the neighbouring generation or body, see the X5 E70 diesel guide. Its scope and tool limits remain separate. Research reviewed: 12 October 2026. Product coverage, software terms and commercial results should be rechecked before publication.

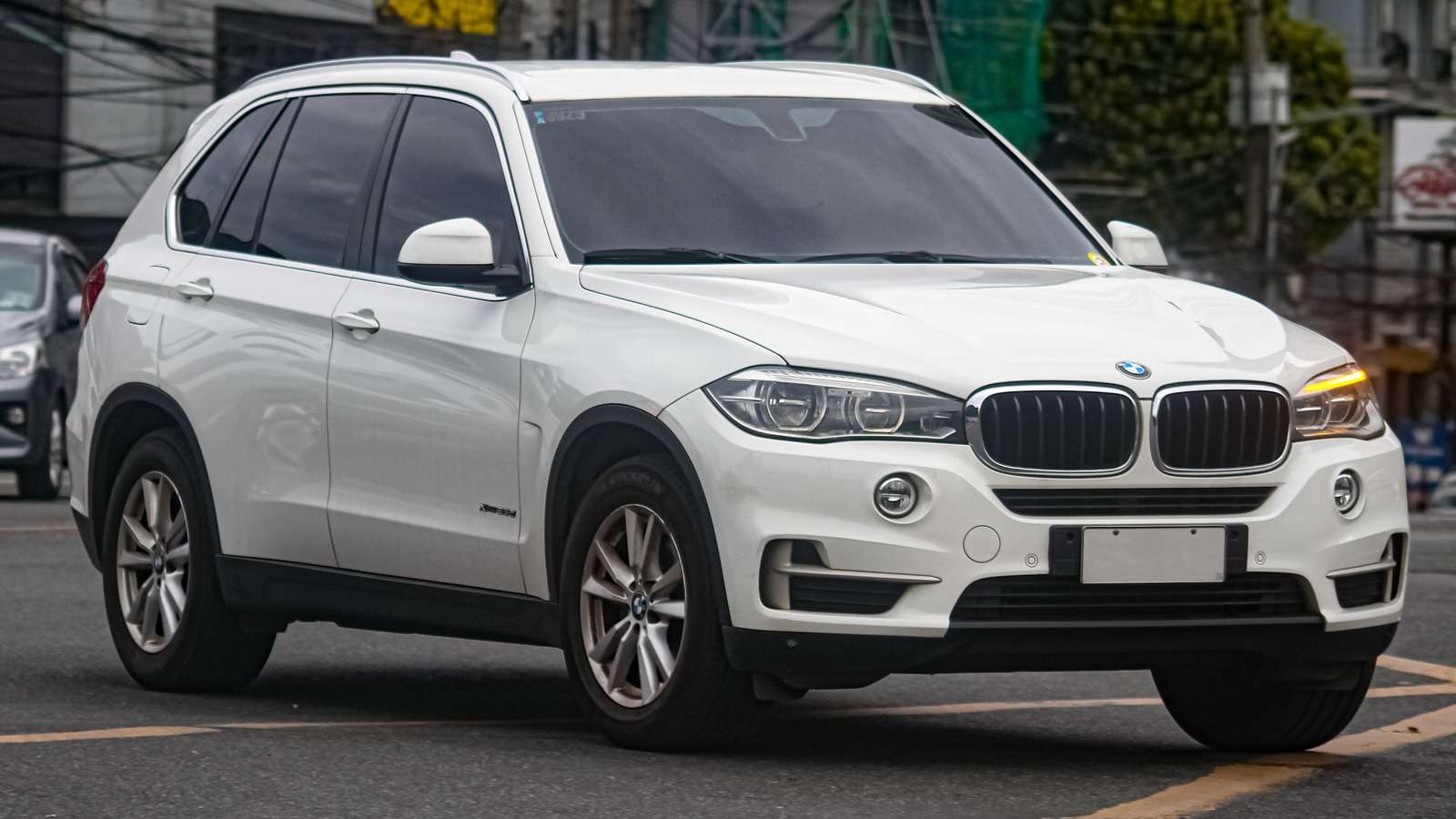

Photo: Ethan Llamas / Wikimedia Commons — CC BY-SA 4.0 International. Resized/framed.
